From domestic water supply to large-scale industrial applications, discover our comprehensive range of high-quality pumps engineered for reliability and performance.
← View All Products
Solar submersible pumpset rated 0.75 kW / 1 HP. Discharge runs from 80 LPM at 30 m down to 15 LPM at 100 m, with the out...
Solar submersible pumpset rated 1.5 kW / 2 HP. Discharge runs from 160 LPM at 30 m down to 20 LPM at 150 m, with the out...
Solar submersible pumpset rated 2.2 kW / 3 HP. Discharge runs from 275 LPM at 30 m down to 30 LPM at 180 m, with the out...
Solar submersible pumpset rated 3.7 kW / 5 HP. Discharge runs from 480 LPM at 30 m down to 40 LPM at 200 m, with the out...
Solar submersible pumpset rated 5.5 kW / 7.5 HP. Discharge runs from 650 LPM at 30 m down to 60 LPM at 250 m, with the o...
Solar submersible pumpset rated 7.5 kW / 10 HP. Discharge runs from 910 LPM at 30 m down to 80 LPM at 250 m, with the ou...
Solar DC submersible pump set rated 0.37 kW / 0.5 HP, built fully in stainless steel or cast iron. 2 models in this rati...
Solar DC submersible pump set rated 0.75 kW / 1 HP, built fully in stainless steel or cast iron. 3 models in this rating...
Solar DC submersible pump set rated 1.5 kW / 2 HP, built fully in stainless steel or cast iron. 4 models in this rating,...
Solar DC submersible pump set rated 2.2 kW / 3 HP, built fully in stainless steel or cast iron. 7 models in this rating,...
Solar DC submersible pump set rated 3.7 kW / 5 HP, built fully in stainless steel or cast iron. 8 models in this rating,...
Solar DC submersible pump set rated 5.5 kW / 7.5 HP, built fully in stainless steel or cast iron. 8 models in this ratin...

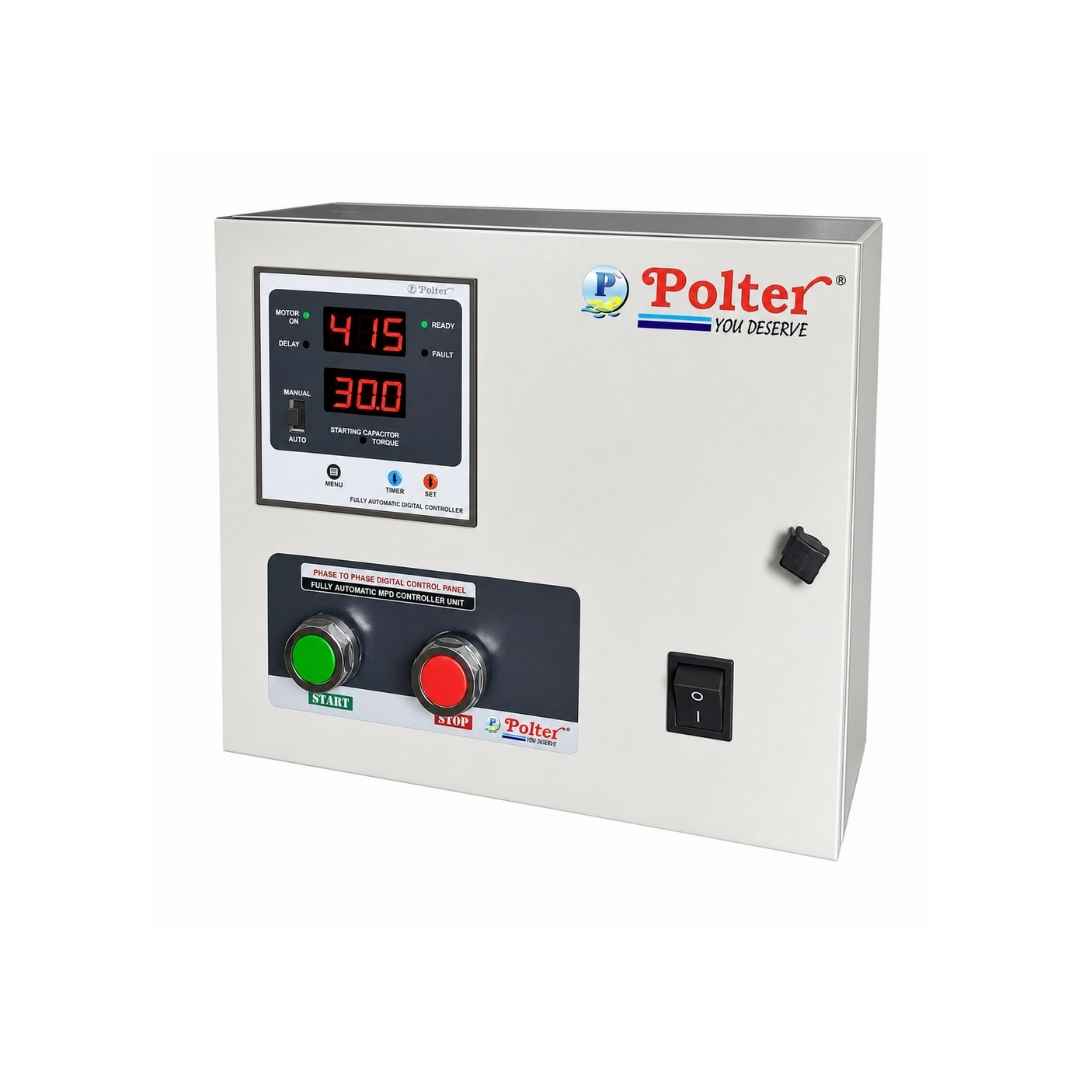

One controller family from 0.5 HP to 15 HP, driving AC or DC motors on solar, grid, or both together. Auto MPPT on every model, motor voltage and frequency settable on site, and an MS powder coated IP 65 enclosure throughout. Panel counts are given for 545 Wp mono and 335 Wp poly modules.
| HP | Solar power | Input voltage | Motor voltage | Max output | Grid power | Mono panel | Poly panel |
|---|---|---|---|---|---|---|---|
| 0.5 HP | 500 W | 30–200 V | 24–110 V | 12 A | 1 Phase 220 V | 545 W × 1 | 335 W × 2 |
| 1 HP | 1000 W | 30–200 V | 24–110 V | 12 A | 1 Phase 220 V | 545 W × 2 | 335 W × 3 |
| 2 HP | 2000 W | 120–450 V | 100–220 V | 15 A | 1 Phase 220 V | 545 W × 4 | 335 W × 6 |
| 3 HP | 3000 W | 120–450 V | 100–220 V | 15 A | 1 Phase 220 V | 545 W × 6 | 335 W × 9–10 |
| 5 HP (Mono) | 5000 W | 250–500 V | 180–320 V | 15 A | 1 Phase 220 V | 545 W × 9–10 | 335 W × 5+5 or 8+8 |
| 5 HP (Poly) | 5000 W | 400–800 V | 340–415 V | 15 A | 3 Phase 415 V | 545 W × 9–10 | 335 W × 16 |
| 7.5 HP | 7500 W | 400–900 V | 300–440 V | 15 A | 3 Phase 415 V | 545 W × 13–15 | 335 W × 24 (12+12) |
| 10 HP | 10000 W | 400–900 V | 300–440 V | 15 A | 3 Phase 415 V | 545 W × 18 | 335 W × 32 (16+16) |
| 15 HP | 15000 W | 400–900 V | 300–440 V | 25 A | 3 Phase 415 V | — | — |
Swipe the table sideways to see every column.
